Salt Chlorinator Idegis Tecno Connect scalable
The scalable Idegis Tecno Connect is the most complete version of the Tecno Connect range for private pools. It maintains the base of the standard equipment, with chlorine production by Salt Electrolysis, backlit touch screen, WIFI and Bluetooth connectivity, salinity and temperature reading and self-cleaning cell, but adds a more advanced approach for those who want a system prepared to work with pH control and ORP redox control.
It is a chlorinator designed for residential installations where a more automated water treatment is required, with greater monitoring capacity and a more precise management of disinfection. Compared to the non-scalable model, this version is oriented to those who want to go a step further in automation and chemical control of water.
What distinguishes the scalable Tecno Connect
The TC Connect ESC range is offered in different productions, just like the standard version, but it is designed to work with a more advanced configuration and with integration of control accessories. It is the right choice when you want a salt chlorinator with a higher level of automation and ready to incorporate pH kit, ORP kit and flowostat kit.
Main advantages
- Compact and clean installation equipment.
- Backlit touch screen.
- WIFI and Bluetooth connectivity.
- Self-cleaning Salt Electrolysis.
- Production control from 0 to 100% in 5 levels.
- Salinity and temperature monitoring.
- Prepared to work with pH and ORP control.
- Input for cover control.
- Possibility of external production control.
- Diagnosis of electrodes and operation warnings.
Available models of the scalable range
- TC Connect ESC 7 g/h – Ref. 77661
- TC Connect ESC 12 g/h – Ref. 77662
- TC Connect ESC 21 g/h – Ref. 77663
- TC Connect ESC 30 g/h – Ref. 77664
- TC Connect ESC 40 g/h – Ref. 77665
Technical characteristics
- Power supply: 230 V AC / 50-60 Hz.
- Production control: 0-100% in 5 levels.
- Working salinity: 3-12 g/L, with a recommendation of 5 g/L.
- Maximum ambient temperature: 40 ºC.
- ABS Control Box.
- Polarity inversion: 2 h, 3 h, 4 h, 7 h and 2-minute test, configurable by software.
- Gas flow detection: yes, factory activated.
- Flow switch detection: yes, available with kit, factory deactivated.
- Production control by blanket: yes, by means of voltage-free contact, between 20% and 80%.
- External production control: yes, via voltage-free contact.
- Electrodes diagnostics: yes.
- pH safety shutdown: yes, configurable from 1 to 120 minutes.
- System configuration menu: yes.
- Salinity indicator: yes, in g/L.
- Temperature indicator: yes, from 0 to 50 ºC.
- Salt alarm indicator: high and low LEDs.
- Temperature alarm indicator: high and low LEDs.
- Degree of protection: IP45.
- Integrated WIFI 2.4 GHz and Bluetooth.
Electrolysis cell
The scalable Tecno Connect cell incorporates self-cleaning activated titanium electrodes with an indicative life of 8,000 to 10,000 hours. The body is made of methacrylate derivative, with hydraulic connection for Ø 63 mm PVC Glue, maximum pressure of 1 kg/cm² and working temperature up to 40 ºC.
Depending on the model chosen, the minimum flow rate and the number of electrodes change. The 7 g/h model requires 2 m³/h and is equipped with 3 electrodes. The 12 g/h requires 3 m³/h and 5 electrodes. The 21 g/h requires 5 m³/h and 7 electrodes. The 30 g/h requires 6 m³/h and 11 electrodes. The 40 g/h requires 8 m³/h and 13 electrodes.
pH and ORP redox control (optional)
The big difference in this version lies in its advanced water control approach. The scalable Tecno Connect can work with pH regulation and ORP measurement, allowing to automate not only chlorine production, but also the chemical balance and disinfection capacity of the water much more precisely.
- Measuring range: 0.00-9.99 pH and 000-999 mV ORP.
- Control range: 7.00-7.80 pH and 600-850 mV ORP.
- Biopool ON control range: 6.50-8.50 pH and 300-850 mV ORP.
- Accuracy: ± 0.01 pH and ± 1 mV ORP.
- Calibration: automatic, by means of pH-ORP standards.
- pH control output: one 230 V / 500 mA output for dosing pump connection.
- pH-ORP sensors: epoxy body with single junction.
Information visible on the screen
The unit’s display clearly shows the production percentage, Bluetooth and WiFi status, electrolysis information, pH, ORP, salinity and temperature. It also incorporates alarm and system status information indicators, access to the setpoint menu, calibration button and access to the information and configuration menu. It is an interface designed to allow the user to adjust the equipment and monitor the water treatment quickly and without complications.
Compatible accessories
The system can be completed with the pH kit reference 76778, the ORP kit reference 76779 and the flowostat kit reference 76780. These accessories allow the installation to be taken to a higher level of automation and safety, especially in pools where a more stable water management is required throughout the season.

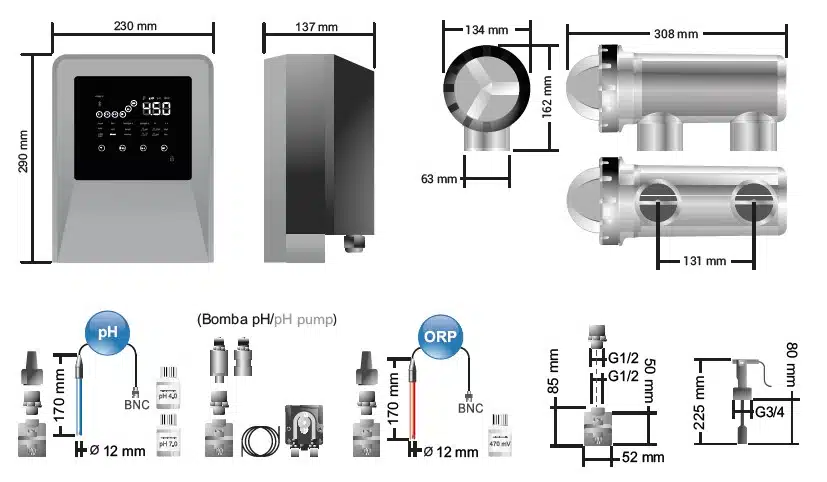

Dimensions
The power supply has dimensions of 230 x 290 x 137 mm. The cell measures 308 x 162 x 134 mm. The hydraulic connection is made on Ø 63 mm.
Why choose the scalable Tecno Connect?
The scalable Idegis Tecno Connect is a very interesting option for those who do not want to stay with a basic salt chlorinator and are looking for a more complete installation, with connectivity, parameter reading, production control and real possibility of automating pH and redox. This equipment is especially recommended for private pools where water stability, ease of use and a more advanced treatment management without overcomplicating the installation are valued.
