Aquarite LT SV Hayward + pH pump

Hayward Aquarite LT SV Salt Chlorinator + Complete pH Kit. The ideal combination of disinfectant production and automatic pH control in a single unit.

A high-performance salt chlorinator with a long-lasting, reliable monopolar cell and a transparent, easy-to-use cell housing that lets you provide the best care for your pool.

The Hayward Aquarite LT salt chlorinator features an automatic cover detection system that instantly reduces chlorine production. In addition, it automatically calculates the salt concentration and allows acid to be injected into the transparent cell to ensure proper cleaning.

The Aquarite LT includes a transparent Probe Holder, a temperature probe, and a Flow detector (except on the 50g/h model, where it is optional) for a simple and comprehensive maintenance experience.

The Hayward Aquarite LT salt chlorinator is the ideal salt chlorination system for users looking for high-performance equipment with a long-lasting cell that allows them to safely monitor redox, temperature, and pH levels.

This chlorine generator and pH pump system enables automated management of salt chlorination and effective control of the pH level, thereby allowing the disinfectant to work more effectively.

The Aquarite LT is extremely easy to use. This is an affordable, modular Salt Chlorinator that you can use in your pool easily and effortlessly.

Hayward Aquarite LTO SV + pH – Features

Hayward pH test kit included. It provides automated control and correction of your pool’s pH by injecting a Minorador. This is especially important because salt chlorinators tend to raise the water’s pH, and chlorine is most effective in the pH range of 7.2–7.4.

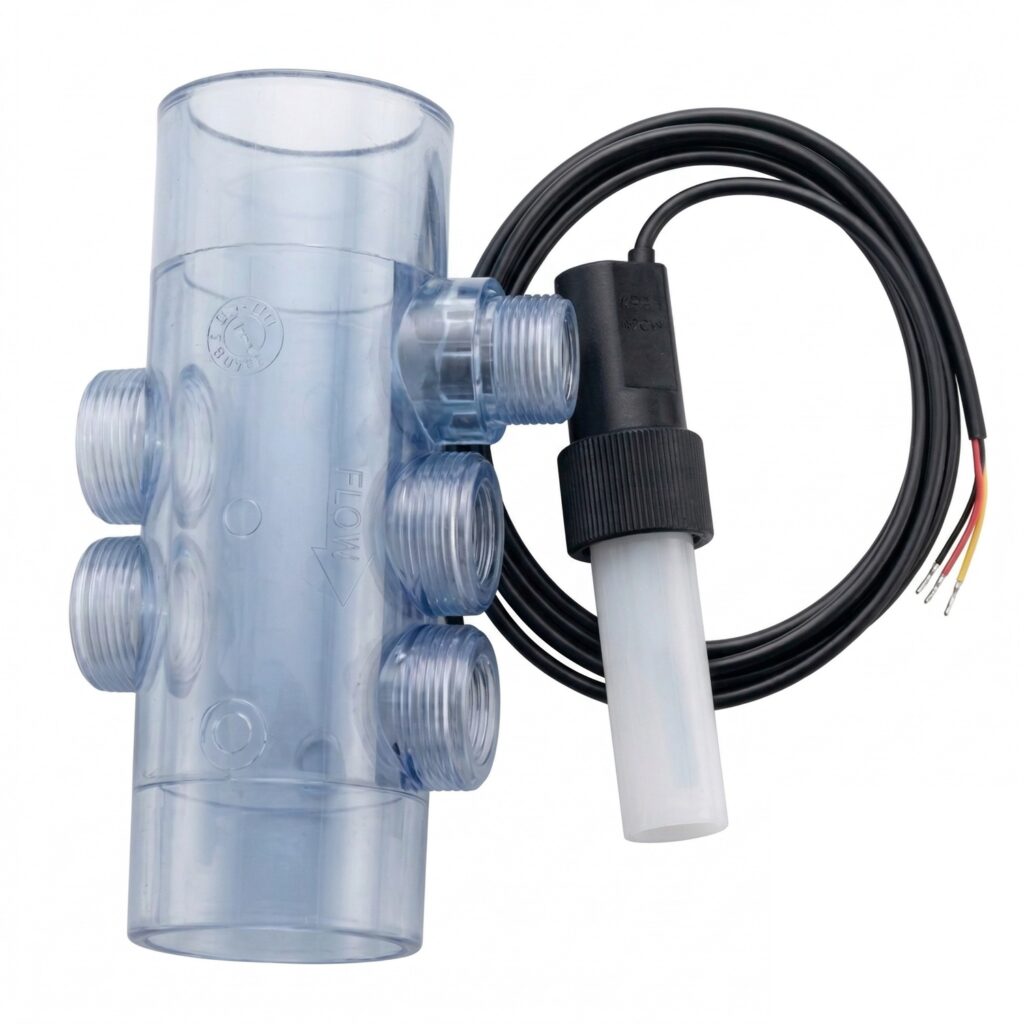

It features a convenient transparent probe holder for pH and Redox probes, making it easy to visually inspect the probes without having to remove them from their probe holders.
Optional Hayward redox kit. Can be used with the Redox Kit to regulate chlorine production.
A transparent cell that allows for visual inspection of the interior to determine whether the electrode needs to be cleaned.
The Aquarite LT SV automatically calculates the salt concentration and displays the measurement on the screen.
Automatic cover detection. Chlorine production can be automated with the automatic cover closed.
The Aquarite LT does not allow you to control the pool’s filtration system or turn the pool lights on or off. It also does not support WIFI connectivity via the Hayward Poolwatch app. All of these features are available on the higher-end models, the Aquarite + Touch and the Aquarite Flo Advanced.
Hayward Aquarite Salt Chlorinator Manual (Aquarite LT Manual): You can download it from the “Documentation” section of the product page.

Complete Specifications Table for the Hayward Aquarite Series

	Salt Chlorinator Aquarite Flo Basic Hayward - pH and redox free From 749€	Aquarite Flo Advanced Salt Chlorinator - Optional pH, Redox, and WIFI - Lighting Control up to 50W From 869€	Salt Chlorinator Hayward Aquarite LT SV - High contrast TFT display - pH and redox control optional From 749€	Hayward Aquarite + SV Salt Chlorinator with TFT Display and Temperature Sensor - Optional WIFI, pH, and Redox From 1349€	Aquarite Plus Touch Hayward - Salt Chlorinator with pH kit - TFT Touch Screen From 1104€	Aquarite Pro Touch Salt Chlorinator Hayward - TFT Touch Screen - TurboCell Request price	Aquarite Plus NG - Salt Chlorinator with Touchscreen, Lighting Control, and Flow Sensor - Optional pH, Redox, and WIFI From 1159€
Models (gr/h)	8 -16 -22 -33 – 50	8 -16 -22 -33 – 50	8 -16 -22 -33 – 50	8 -16 -22 -33 – 50	8 -16 -22 -33 – 50	10 – 20 – 30	8 -16 -22 -33 – 50
Low Salt model option	❌	✅	✅	✅	✅	✅	❌
Screen Type	Colored LEDs	Backlit LCD	2.8″ TFT	2.8″ TFT	4.3″ TFT Touchscreen	4.3″ TFT Touchscreen	4.3″ TFT Touchscreen
Removable remote screen	❌	❌	❌	Optional	Optional	✅	Optional
Filtration Control	❌	✅	❌	✅	✅	✅	✅
LED Light Control	❌	✅	❌	✅	✅	✅	✅
Light Transformer	❌	60W included	❌	❌	❌	❌	60W included
Variable speed control	❌	✅	❌	✅	✅	❌	✅
pH Control	❌	Optional	Optional	✅	✅	✅	✅
Redox Control	❌	Optional	Optional	Optional	Optional	✅	Optional
Chlorine Level in ppm	❌	❌	❌	Optional	Optional	Optional	Optional
Temperature sensor	❌	Optional	Optional	✅	✅	✅	✅
“Smart” Mode	❌	Optional	✅	✅	✅	✅	✅
WIFI Control	❌	Optional	❌	Optional	Optional	❌	Optional
Ethernet Control – Cable	❌	Optional	❌	Optional	Optional	❌	Optional
Vistapool Mobile App	❌	Free with WIFI control	❌	Free with WIFI control	Free with WIFI control	❌	Free with WIFI control
Modbus	❌	Yes – with WiFi Module	❌	Yes – with WiFi Module	Yes – with WiFi Module	❌	Yes – with WiFi Module
Cell Type	Premium Monopolar	Premium Monopolar	Premium Monopolar	Premium Monopolar	Premium Monopolar	Hayward Turbo Cell S3	Premium Monopolar
Flow Sensor	✅	✅	✅	✅	✅	✅	✅
Gas Sensor in a Cell	✅	✅	✅	✅	✅	✅	✅
Polarity Control	❌	✅	✅	✅	✅	✅	✅
Salt Level on Screen	❌	❌	✅	✅	✅	✅	✅
Low Salt Alarm	✅	✅	✅	✅	✅	✅	✅
Superchlorination Mode	✅	✅	✅	✅	✅	✅	✅
Cover Detection	✅	✅	✅	✅	✅	✅	✅
IP Rating for the Enclosure	IP65	IP65	IP65	IP65	IP65	IP65	IP65
Auxiliary Outputs	❌	1 12V auxiliary relay	❌	2 12V relays + 2 230V relays	2 12V relays + 2 230V relays	❌	2 12V relays + 2 230V relays
Language Selection	❌	Yes. 13 languages	Yes. 13 languages	Yes. 13 languages	Yes. 13 languages	Yes. 13 languages	Yes. 13 languages
Salt Level in Water	Starting at 3 gr./L	Starting at 3 gr./L	Starting at 3 gr./L	Starting at 3 gr./L	Starting at 3 gr./L	Starting at 3.2 gr./L	Starting at 3.2 gr./L
	Salt Chlorinator Aquarite Flo Basic Hayward - pH and redox free From 749€	Aquarite Flo Advanced Salt Chlorinator - Optional pH, Redox, and WIFI - Lighting Control up to 50W From 869€	Salt Chlorinator Hayward Aquarite LT SV - High contrast TFT display - pH and redox control optional From 749€	Hayward Aquarite + SV Salt Chlorinator with TFT Display and Temperature Sensor - Optional WIFI, pH, and Redox From 1349€	Aquarite Plus Touch Hayward - Salt Chlorinator with pH kit - TFT Touch Screen From 1104€	Aquarite Pro Touch Salt Chlorinator Hayward - TFT Touch Screen - TurboCell Request price	Aquarite Plus NG - Salt Chlorinator with Touchscreen, Lighting Control, and Flow Sensor - Optional pH, Redox, and WIFI From 1159€

	Aquarite LT Salt Chlorinator with pH Kit Included – Features
	Aquarite LT 16 AQRLTOSV16 + B-OPTION-PH	Aquarite LT 22 AQRLTOSV22 + B-OPTION-PH	Aquarite LT 33 AQRLTOSV33 + B-OPTION-PH	Aquarite LT 50 g AQRLTOSV50 + B-OPTION-PH
Maximum_Cl₂ production per_hour	16 gr.	22 gr.	33 gr.	50 gr.
Salinity	From 3 gr to 100 gr Na/Cl
maximum m3 pool size	50	75	100	150
Display	2.8-inch color TFT
power supply	220 V; 50/60 Hz
Dimensions	270 x 220 x 115 mm
Protective cover	White ABS plastic
Departure	8–15A	8–20 A	10–15A	35–45 A
Electricity consumption	120 W	160 W	150 W	360 W
Automatic Cleaning	It works on the principle of reverse polarity
ATM	Black Flame-Retardant ABS Plastic
pH Control	Yes. Complete kit included.
Temperature Control	Optional
Salinity Test	Detects gr. of salt (+- 10%)
Automatic cover control	Configurable – Production Level 0–100%

What are the benefits of salt chlorination for swimming pools?

It effectively disinfects pool water and does not cause skin or eye irritation. Avoid using treatments that contain chemicals, such as chlorine tablets.

What is the correct salt level for a swimming pool?

It is recommended that the concentration be between 4 and 5 gr per liter, or, in other words, between 4 and 5 kg of salt per cubic meter. If the concentration is lower, the Salt Electrolysis system will not function properly.

Which is healthier: chlorine treatment or salt chlorination?

Both methods use chlorine—a highly potent, broad-spectrum disinfectant—for disinfection. The advantage of salt chlorination is that it produces a more natural and consistent form of chlorine, which eliminates chloramines and reduces the likelihood of red eyes or irritation of the skin and mucous membranes.

Is there an Aquarite LT SV chlorinator available for condominium pools?

Yes, the Hayward Aquarite salt chlorinator (50 g/hour) is suitable for small condominium pools. Check out our salt chlorinator calculator for more information.

What are the benefits of installing a flow detector on a Salt Chlorinator?

The flow detector in the Aquarite LT is a safety feature that allows the unit to verify that water is actually flowing before it produces chlorine. In this way, the chlorinator stops or prevents electrolysis when the pump is off or when there is insufficient flow in the pipe, helping to protect the cell and prevent unnecessary gas buildup in the cell housing. It is especially useful in situations such as a filtration shutdown, filter backwashing or rinsing, or any hydraulic issue that reduces water flow.

${%ALT_TEXT%}$

{%CAPTION%}

User manual

Aquarite LT SV Manual de Usuario

Documentation

Ficha técnica del Aquarite LT clorador salino

Documentation

Manual general de usuario

Documentation

Sensor caudal y gas en Aquarite - Guia de uso (multilingüe) como resolver el problema de mensaje de alarma FLOW o F1 en cloradores salinos hayward aquarite, klx o sugar valley

Additional information

Brand	Hayward
Manufacturer	Hayward
g/h production	16g/h, 22g/h, 33g/h, 50g/h
Voltaje	220v
Control de pH	Optional
Redox control	Optional
Control de Temperatura	Yes
Lectura de sal en pantalla	Yes
Wifi	Yes
