Replacement Cell for PROSALT and PROSALT LTE Chlorinators - 50 g/h or 75 g/h

-29%

Sale!

celula prosalt pooltechnologie clorador 50 75 100 150gh-poolcomet

From 1779€

FREE SHIPPING

- Salt chlorinator cell for industrial use
- Prosalt LTE Model
- Prosalt Model
- Cell holder not included.
- Original cell PoolTechnologie

g/h production

Clear

Got questions?

Replacement cell for ProSalt and ProSalt LTE Pool Technologie salt chlorinators

The replacement cell for Pool Technologie’s ProSalt and ProSalt LTE salt chlorinators is designed to replace worn-out electrodes in the unit, maintaining chlorine production capacity without the need to replace the entire system.

Thanks to the high-quality coating on its electrodes, it offers an optimal service life of up to 10,000 hours under normal conditions of use. Its transparent design makes it easy to check the condition of the cell and detect limescale buildup or electrode wear.

The ProSalt system enables modular chlorine production, adjusting the number of cells to the pool’s needs. There are two main types of cells: one with a capacity of 50 g/h and another with a capacity of 70 g/h. Total production is achieved by connecting cells in series or in combination, depending on the equipment model and the facility’s chlorination requirements.

Main advantages

Genuine Pool Technologie spare part for ProSalt and ProSalt LTE chlorinators.
Approximate service life of 10,000 hours thanks to the high-quality coating on the electrodes.
Transparent cell for visually checking the condition of the electrodes and checking for any limescale buildup.
Easier maintenance: you only need to replace the worn electrodes.
Automatic cleaning via progressive polarity reversal with memory, adjusted to water hardness.
Modular system: allows you to adjust chlorine production by adding cells as needed for the pool.
Easy installation in systems designed for in line mounting or mounting on a modular rack.

Modular chlorine production

The ProSalt and ProSalt LTE chlorinators are designed for high-demand facilities, such as large-volume pools, public pools, or facilities with heavy use. Chlorine production is adjusted by combining cells.

Cell Type	Nominal output	Common use
ProSalt 50 Cell	50 g/h	ProSalt / ProSalt LTE units with lower capacity or modular configurations based on 50 g/h
ProSalt 70 Cell	70 g/h	ProSalt / ProSalt LTE systems with higher production capacity or modular configurations based on 70 or 75 g/h

Depending on the chlorinator model, the total output can be achieved using multiple cells installed in series or in a modular rack. For example, a 100 g/h unit can operate with two 50 g/h cells, while higher-capacity models can combine multiple cells to achieve output rates of 140, 210, 280, 420, or 560 g/h, depending on the system configuration.

Technical Specifications – Prosalt Pooltechnologie Cell

Product	Replacement cell for ProSalt and ProSalt LTE salt chlorinators
Brand	Pool Technologie
Compatibility	ProSalt and ProSalt LTE Salt Chlorinators
Available types	50 g/h cell and 70 g/h cell
Lifespan estimation	10,000 hours under normal conditions of use
Electrode material	High-quality coated electrodes
Design	Transparent cell for visual inspection
Cleaning	Self-cleaning via progressive polarity reversal with memory
Installation	Installation in line or in a modular rack, depending on the equipment configuration
Standard hydraulic connection	63 mm tubing in ProSalt / ProSalt LTE equipment
Maximum cell pressure	3 bar
Maximum water temperature	40 ºC
Minimum salt concentration	From 2.5 g/l in ProSalt LTE and from 3 to 35 g/l in the ProSalt range, depending on the model

Electrode references

Reference	Application
SENS003119	ProSalt / ProSalt LTE Electrode for 50 g/h and 100 g/h configurations – 13PMX2
SENS003120	ProSalt / ProSalt LTE electrode for configurations of 75 g/h, 1,510 g/h, and higher output levels depending on the cell configuration

ProSalt Cell Specifications

Maximum flow rate in the cell: 22 m³/h. Recommended Bypass. Cell housing diameter: 63 mm (not included)

Prosalt LTE 50-100 SENS003119: 13 blades, each 23 cm long. Total cell length: 302 mm
Prosalt LTE 75-150 SENS003120: 13 blades, each 33 cm long. Total cell length: 406 mm

Does this cell work with any ProSalt or ProSalt LTE chlorinator?

The exact model of the equipment and the installed chlorine production capacity must be verified. The ProSalt and ProSalt LTE systems use modular cells with capacities of 50 g/h or 70–75 g/h, which are combined to achieve the chlorinator’s total output. Before replacing it, it is important to confirm the part number of the original cell.

Do we need to replace the entire cell or just the electrodes?

The system is designed to make maintenance easier. In many cases, it is only necessary to replace the worn electrodes, while keeping the rest of the system in place. This reduces maintenance costs and prevents unnecessary replacements.

How often should the cell be replaced?

The estimated lifespan is up to 10,000 hours under normal conditions of use. The actual lifespan will depend on factors such as water hardness, salt levels, operating hours, water chemistry, and maintenance performed.

Does the cell clean itself automatically?

Yes. The ProSalt and ProSalt LTE systems feature automatic cleaning via progressive polarity reversal with memory. This system helps reduce limescale buildup on the electrodes and adjusts operation based on water hardness.

How do I know if my cell is worn out?

The transparent cell allows for a visual inspection of the electrodes’ condition. In addition, the chlorinator itself may display alarms or warnings related to low output, cell failure, low salt levels, or operational issues. If the cell is clean, the salt level is correct, and production remains low, it may be necessary to replace the electrodes.

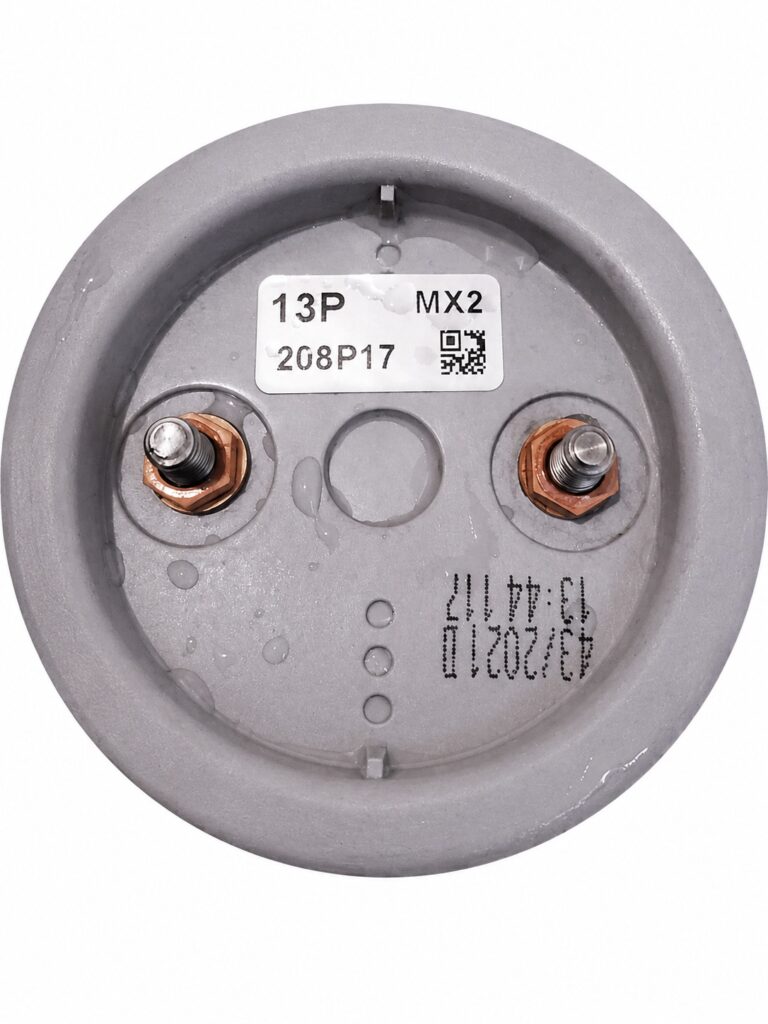

13PMX2 replacement cell—which cell does it correspond to?

The 13PMX2 cell corresponds to the SENS003119 model (50 g/h), available in PROSALT LTE units rated at 50 g/h or 100 g/h (2 cells per unit)
